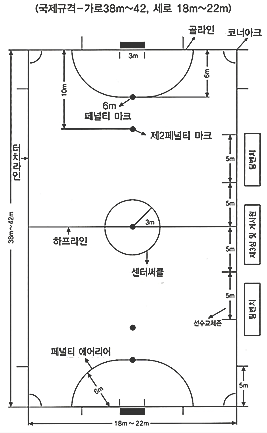

Dimensions


The pitch is a rectangle with the length always greater than the width.

General
Length Min
Max
25m
42m
Width Min
Max
15m
25m
International Match
Length Min
Max
38m
42m
Width Min
Max
18m
25m

Marking





The pitch lines should be drawn with clear eight-centimeter lines. The longer boundary lines are called ¡®touchlines¡¯ and the shorter boundary lines are called ¡®goal lines¡¯ A half-way line is marked across the playing are.
The center mark is surrounded by a circle 3meters in radius.
Penalty Area





In front of each goal is an are known as the penalty are This area is created by drawing quarter circles with a 6m radius from the goal line, centered on each goal post.
The upper part of each quarter circle is then joined by a 3.16m line running parallel to the goal line between the goalposts.
Penalty Mark


The penalty mark is 6 meters to the center circle from the mid-point of the goal line.
Second Penalty Mark


The second penalty mark is 10 meters to the center circle from the mid-point of the goal line.
Corner Arc
25cm quarter circles are drawn on each vertex of the pitch.
Substitution zones



Two substitution zones will be marked on each side of the half-way line on the bench side of the pitch. Each zone is 5m long and 80cm deep. (40cm inside, 40cm outside the pitch)
Goals


The goals are 2m high and 3m wide. The width and thickness of the cross bar connecting the goal posts is 8cm.

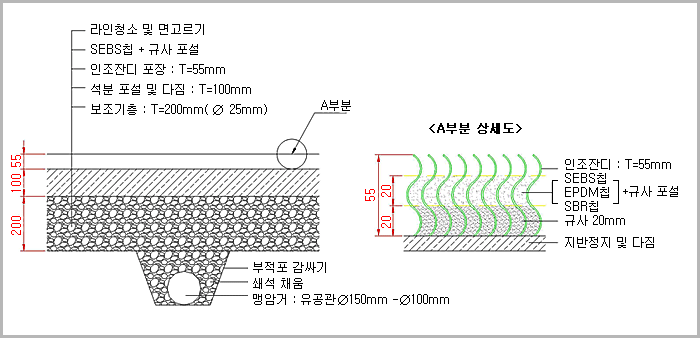

1. Surface of the Pitch: artificial turf
2. Leveling f the ground-> preparing subbase -> testing and confirming the level and hardness of the ground
¡¡-> rolling out the artificial turf
3. Spraying sand and rubber chips over turf to protect players from injury.

Refefence: http://www.futsal.org
